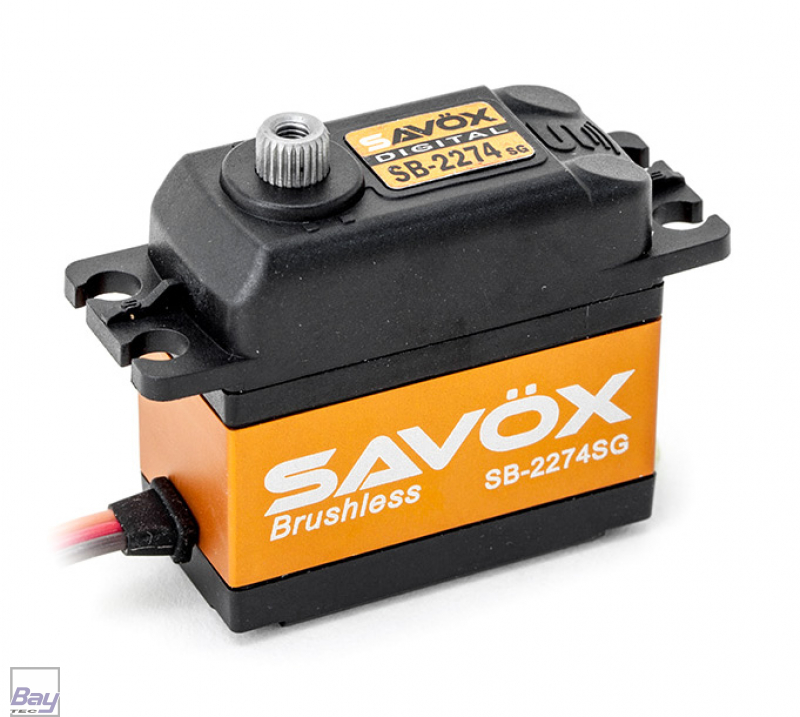

Savöx SB-2274SG Servo 25Kg 0,08s HV Alu Brushless Stahl Getriebe

SAVÖX SB-2274SG - High Voltage Brushless Steel-Geared High Speed/Torque Servo

The Savox SB-2274SG High Voltage Brushless Digital Servo combines leading edge technology with super high 12 bit (4096) resolution.

Features:

• High Voltage

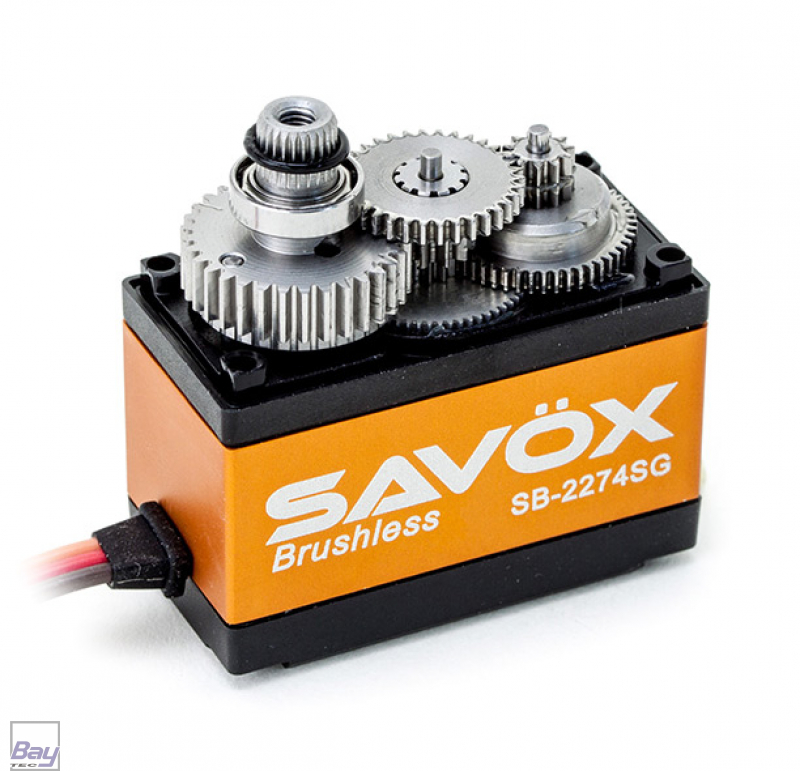

• Unique steel gear train
• Brushless motor for smooth operation and efficiency
• Ideal for 1/10, 1/8 buggies, and large scale aircraft

Specifications:

• Torque @ 6V: 20kg/cm
• Torque @ 7.4V: 25kg/cm
• Speed @ 6V: 0.105 sec/60 deg
• Speed @ 7.4V: 0.08 sec/60 deg

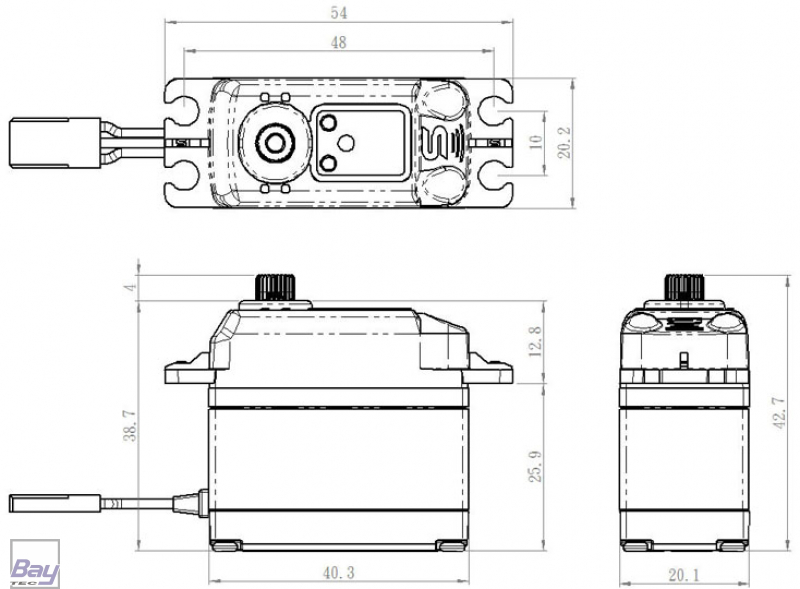

• Dimensions L x W x H: 40.3 x 20.2 x 38.7mm
• Weight: 69g

Technical Details:

• Operating Temperature: -10° to 50°C
• Running Current (no load): 180mA @6.0V, 220mA @7.4V
• Stall Current (at locked): 6000mA @6.0V, 7400mA @7.4V
• Idle Current: 5mA @6.0V, 5mA @7.4V
• Wire Length: 300 +/- 5mm
• Output Gear Spline: 25 Tooth
• Bearings: 2BB
• Operating Travel: 100° (1000 → 2000 µ second)
• Neutral Position: 1500 µ second
• Pulse Width Range: 800 → 2200 µ second
• Maximum Travel: Appx 130° (900 → 2100 µ second)
• Refresh Rate: 333 Hz
• Motor Type: Brushless
