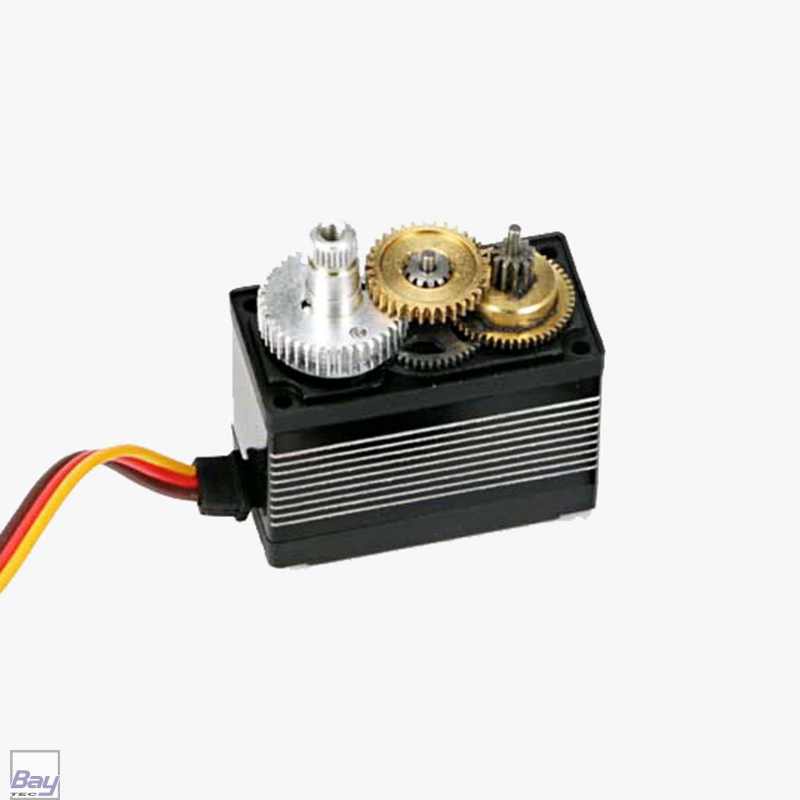

Bay-Tec Eco-Line Servo MG 958 - 20kg - 20mm - 65g

Technische Daten:

Weight: 65g

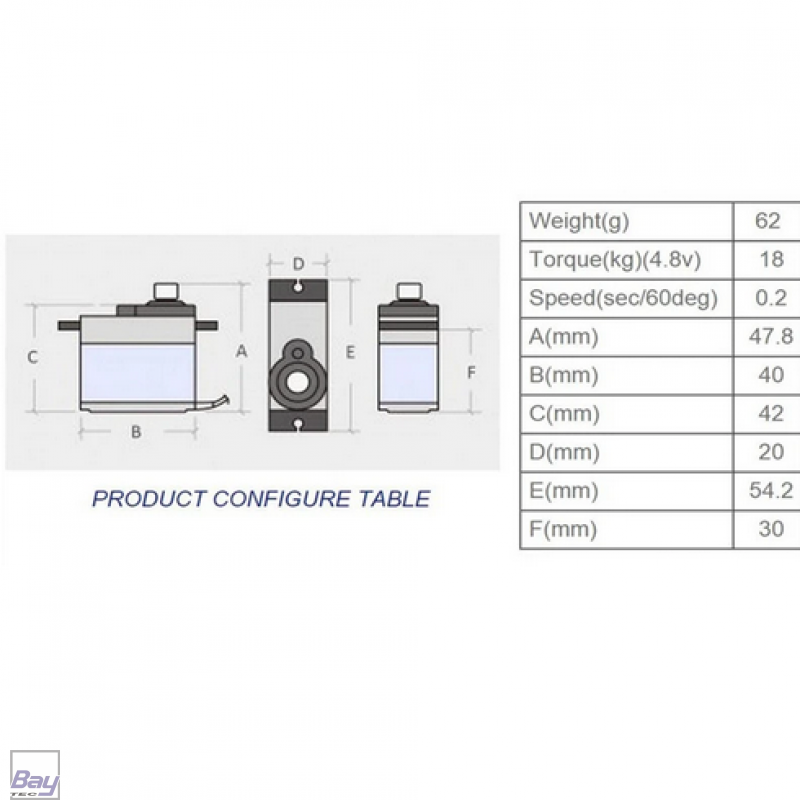

Dimensions: 40.2 x 20.1 x 36.8mm
Operating Voltage: 4.8v-6.6v
Stall Torque (4.8v): 18.0kg.cm
Stall Torque (6.6v): 20.0kg.cm
Servo case: Alloy case in the middle
Gear Type: Metal gear
Bearing: Double ball bearing
Temperature range: 0- 55deg
Operating Temperature Range: 0 ~ +55 Degree C
Operating Speed (4.8v): 0.18sec/60 degree
Operating Speed (6.0v): 0.15sec/60 degree
servo wire length: 32cm
Current draw at idle 10MA
No load operating current draw 170MA
Stall current draw 1600MA
Servo Plug: JR (Fits JR and Futaba)

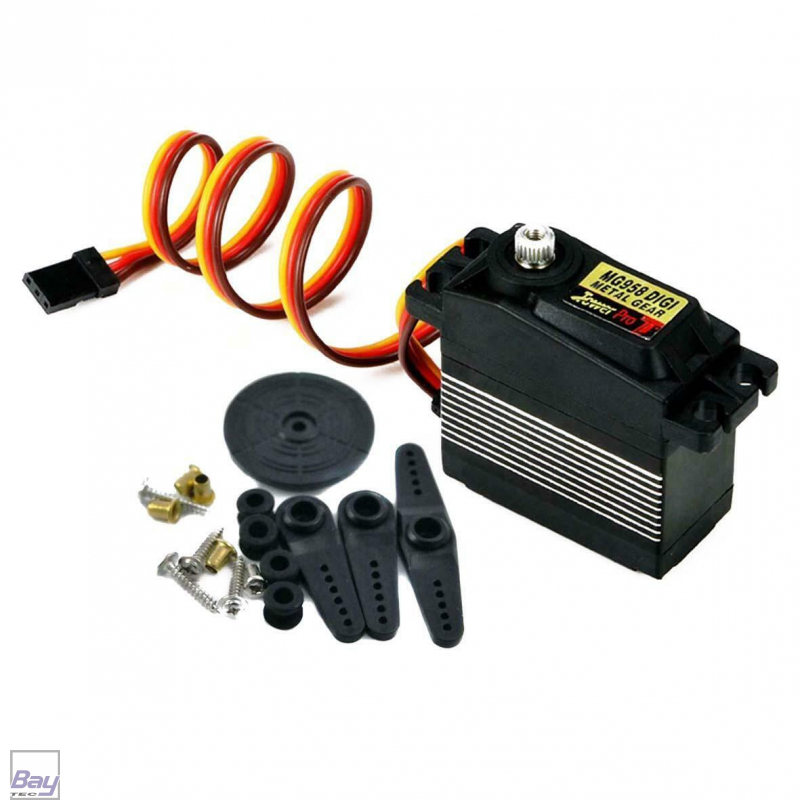

servo arms &screws included and fit with Futaba servo arm
