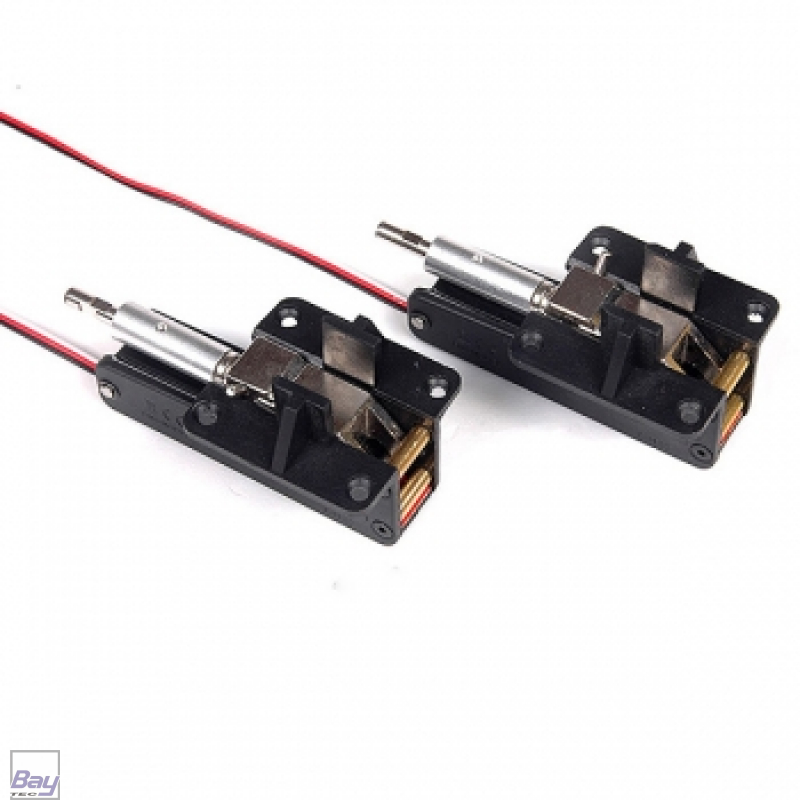

FMS ELECTRONIC RETRACTS BIG SCALE 1400mm F4U Corsair V3 - Paar (links und rechts)

This new set of retracts (includes right and left) for the 1400mm Corsair is a HUGE improvement over the old version of the retract. This set has complete metal trunnions, metal jack screw, metal stops on either side of the retract, and a thick and rugged plastic housing. These will not collapse. The micro switch is under the jack screw and trunnion as opposed to the old design where a hard landing could break the micro switch. This design includes channels to stop the trunnion from moving so it physically cannot collapse during a hard landing. We find these retracts to be a HUGE improvement over the old retracts. These retracts also operate at 1/2 the speed of the prior version so they open and close at a much more scale speed (about 6 seconds to open, 6 seconds to close). This is a perfect rotating retract for planes up to 8 pounds and OEM on FMS 1400mm Corsair sold after 3/2014

Specifications

Mounting Plate Dimensions:

• Mounting plate width: 39mm
• Mounting plate length: 42.3mm
• Distance between mounting plate holes - width (on center): 28mm
• Distance between mounting plate holes - length (on center): 34.5mm

Retract Dimensions:

• Length: 71.6mm
• Width (Excluding mounting plate): 18.2mm
• Height with mounting plate: 38.5mm

Other Specifications:

• Weight: 2.7oz (76.8g)
• Current draw: 10mA idle, 900mA in action
• Operating voltage: 4.8V - 7.4V
• Sequence time: 4.8V=5.68sec, 6V=4.57sec, 7.4V=3.68sec
